Our solutions

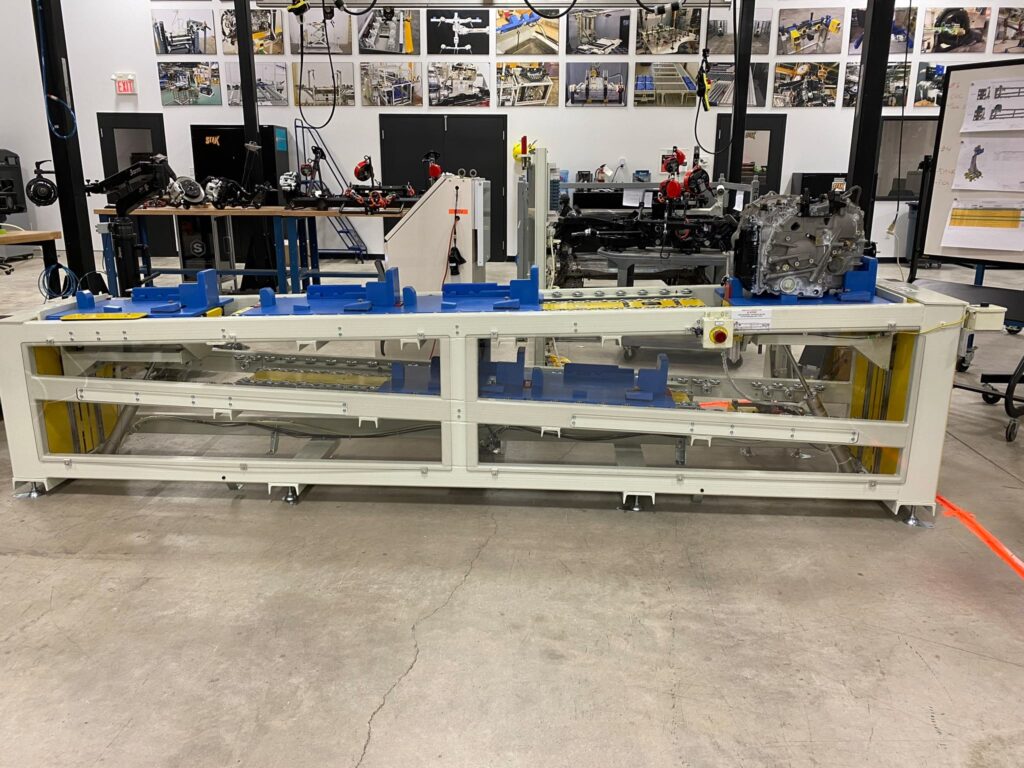

Transmission Chuter

Custom designed PLC Controlled over/under chatter with build in elevators and prep station to rotate, mate and secure transfer case to transmission. This chuter was designed & supplied with 3 buffer stations on each level and can accommodate 8 trays.​

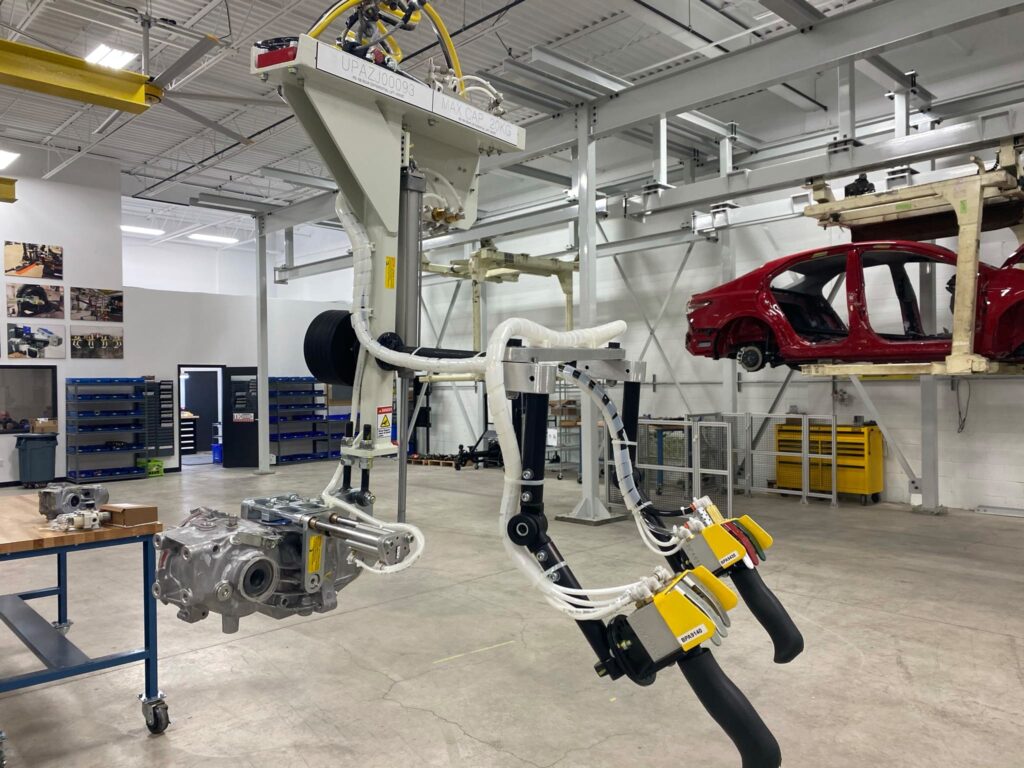

Rear Diff Pick and Rotate

Custom designed lift assist to reach into dunnage, pick and rotate rear differential and place on prep dolly. A unique feature in this design allows the hoist support to shift centre of gravity to compensate for the change in orientation of the part.

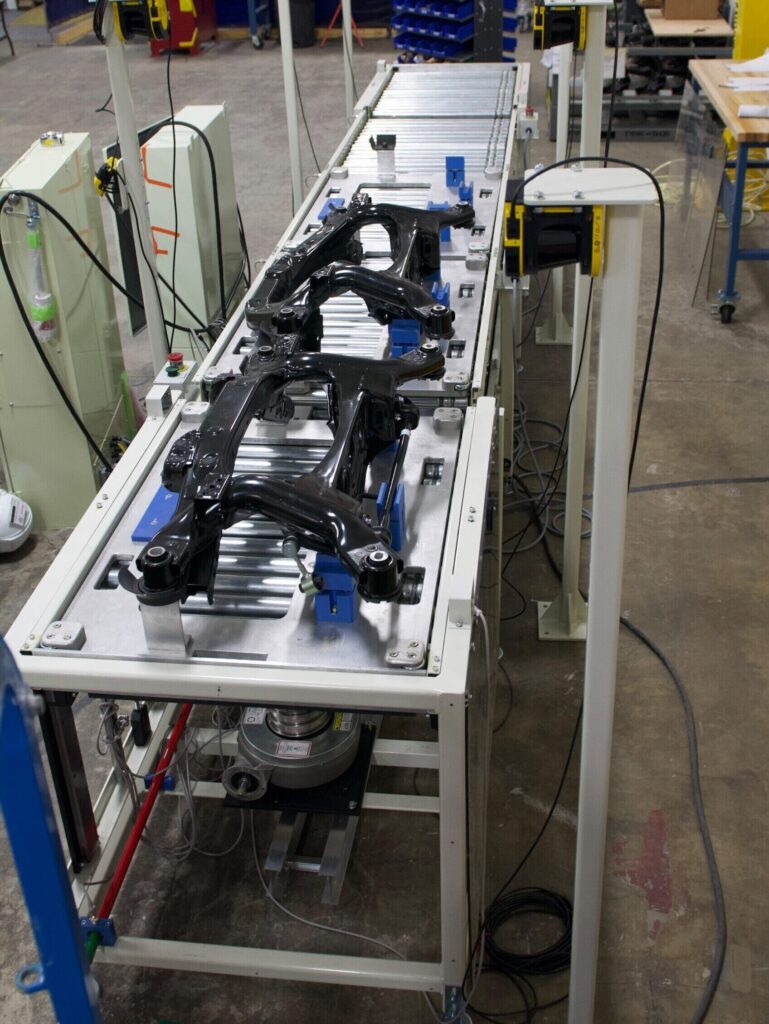

RSM Conveyor

Custom designed over/under power driven PLC controlled chuter with spiral lift elevators. The chuter was designed with safety scanners and is equipped with stations to install grommets, stabilizer bar temp tighten and 2 buffer stations, along with 6 RSM trays.​

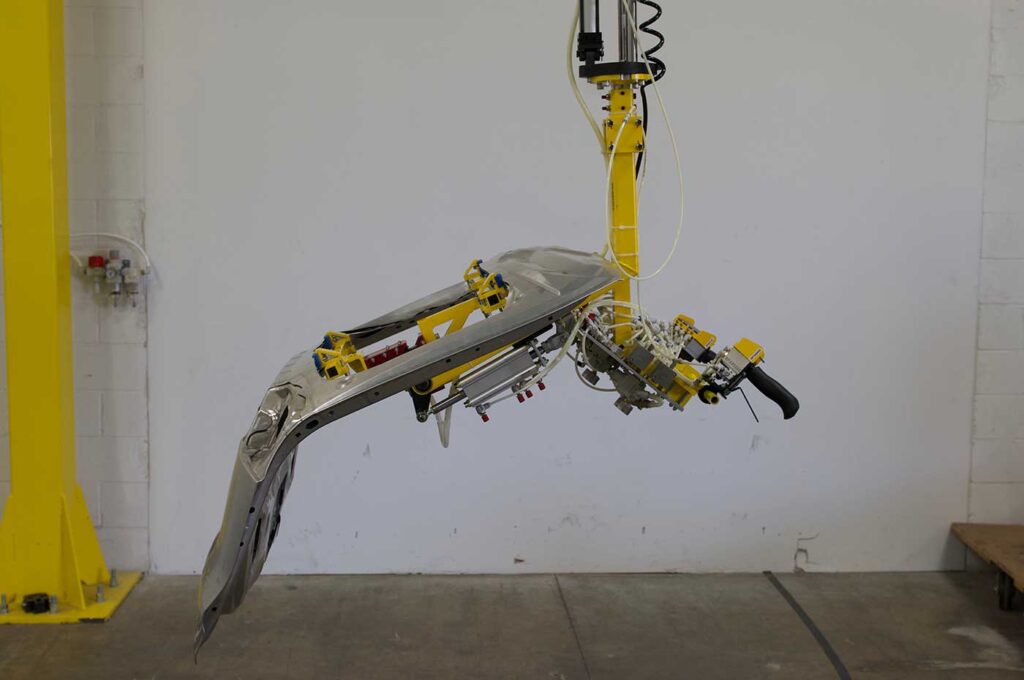

Hatch Manipulator

Custom designed lift assist that reaches into dunnage, lifts the hatch and then indexes the hatch to an angle so the operator can prep the hatch. Once prepped, the operator can use the manipulator to place the hatch onto a chuter. ​

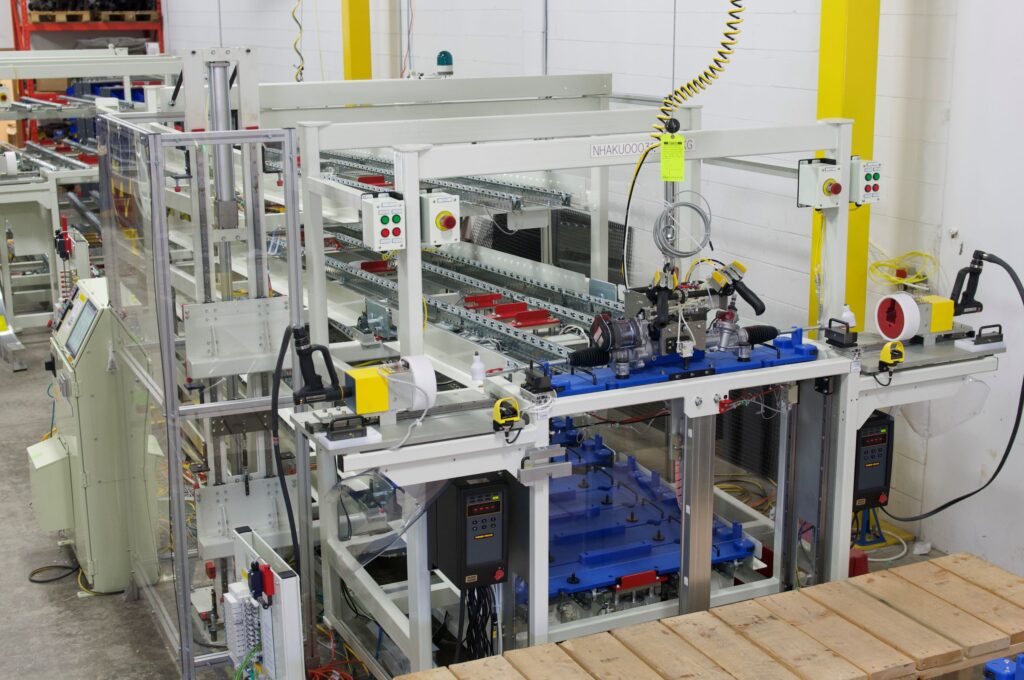

Steering Link Prep Chuter

Custom designed PLC controlled multi level over/under chuter with elevators and steering link prep. Both RH & LH tightens use pre-set auto function to reach temp tighten of 10NM and release tool without T/M interaction. Includes 50 trays, line side PLC controlled multi level over/under chuter and conveyance dolly which interacted with both chuter systems.​

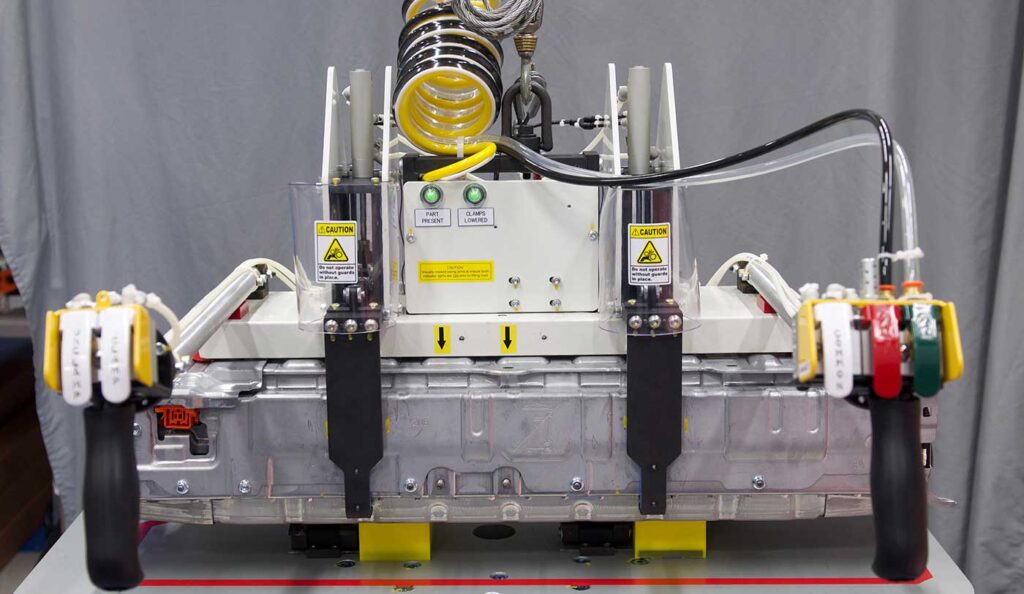

HV Battery Lift & Prep Table

Custom designed end effector to pick HV Battery from dunnage, place onto prep table, then place on Chuter. The floating handles needed to keep team member in ergonomic position at all times.​
